Processor (CPU):
Powered by Intel® 10th or 11th Generation Core™ i9, i7, i5, or i3 processors. Delivers powerful multi-threaded performance, ideal for complex industrial control systems and AI edge computing.

Memory (RAM):
Supports up to 128 GB DDR4 ECC or non-ECC memory via four SO-DIMM slots, providing excellent memory capacity for intensive workloads and reliability in critical systems.

Storage Options:
Multiple storage options including M.2 NVMe SSD, 2.5″ SATA SSD/HDD, and mSATA. Configurable for RAID support to enhance data redundancy and performance.

Graphics:
Integrated Intel® UHD Graphics 630, with optional discrete GPU or FPGA support for high-performance graphical and AI workloads.

Connectivity and I/O Interfaces:
Includes up to:
6 × Gigabit Ethernet ports (Intel® i210)
6 × USB 3.0 / 2.0 ports
2 × DisplayPort or DVI outputs
2 × RS-232/422/485 serial ports
GPIO, CAN bus, and audio I/O (optional configurations)

Expansion Options:
Supports miniPCIe, M.2, PCIe, and optional expansion slots, offering flexibility for additional peripherals and custom applications.

Power Supply:
Wide-range DC input from 8 to 36 VDC (or up to 110 VDC for railway versions), ensuring compatibility with mobile, transportation, and industrial systems.

Cooling System:
Fanless design with passive heat dissipation for silent, low-maintenance operation, making it ideal for environments with limited airflow or harsh conditions.

Temperature Range:
Designed for extreme temperature environments, with an operating range of -40°C to +75°C, making it suitable for outdoor, industrial, and transportation use.

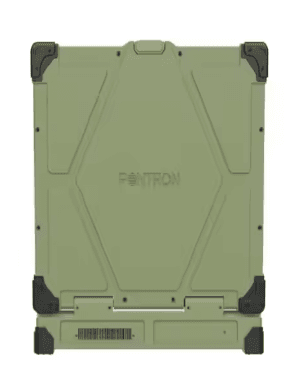

Mechanical Design:
Built with a rugged aluminum housing that provides excellent shock and vibration resistance. Ideal for demanding 24/7 operation in industrial
